Shrinking Packing Machine
Technical Specifications
| Gate Size | Machine Dimension | Consumption Voltage | Conveyor Speed |
| 6 X 6 | 36" x 18" x 34" | 2.5 k.w. | Variable |
| 9 X 6 | 36" x 21" x 37" | 2.5 k.w. | Variable |
| 12 X 12 | 39" x 24" x 40" | 3.5 k.w. | Variable |
| 14 X 10 | 39" x 26" x 38" | 3.5 k.w | Variable |
Chain conveyor: Heavy duty hollow bush pin chain of diamond or Rollon brand chain.Conveyor rod covered with Asbestos Gland or silicone tube very long and trouble free life of conveyor.
Teflon Mesh: Teflon mesh cloth are used in this type of conveyor.Conveyor covered with Teflon cloth Boundary.It is also long life and used for small and light weight articles.
Silicon cloth: It is used for all type of work with Powder drying also
Easy to work with single operator Work with 2.5 k.w only (9'X9") and less Single phase three phase option in singlemachine Variable conveyor speed with option
Totally closed chamber with silica insulation * conveyor rods are covered with silicon tube minimum consumption of area due to compact * all size of machines are available as per parties required Powder coated rust proof design body (s.s. Body available) x Conveyor motor are of 1\8 H.P (P.M.D.C )
Features
| Our Baby Models are designed with lots of love and very Hard Work |
| It is easily operated with single operator.Automatic download of articles at other end |
| It can operate in single Phase wiring and three phase wiring without any more changes |
| Our Baby are simple in operation highly efficient |
| Very Low maintenance and very economical in costing |
| It has a three option in conveyor belt |
| Consumption of electricity are minimum due to compact and light weight designs, With silica insulation and compressed Pipe heater of S.S. 304.It is also covered with Air Fins for efficient use of energy |
| Powder coated corrosion proof body (S.S body also available in G.M.P) |
| Conveyor Motor are of 1/8 H.P P.M.D.C direct gear |
| Blow Motor 1/8 H.P A.C Motor |
| Minimum consumption of floor area due to compact designs and easily movable on floor area due to castor wheel |
| All ready sold 50 Machines in all over India and abroad |
Fully Auto Shrink Packaging Machine
Diamond Brand Auto Shrink Packing Machine:
| Specially designed for the full automatic packaging production line of , beverage, pure water, fruit juice, daily products, etc. |
| With full automatic functions of bottle transfer, film packing, sealing and cut, shrink, cooling and shaping etc. |
| The quick seal cooling structure guarantee that the seal has a high strength even if under high speed production condition |
| Adopt with PLC automatic program circulation control with stable and reliable performance |
| The original janatics cylinder guarantee correct operation and durable |
| The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss |
| All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed |
| Unique thermal passage with centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect |
| Three layer of heat insulation treatment with good insulating properly, quick temperature rise and energy saving |
| The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported |
| It is easy to change the packaging combination and bottle type to integrate the multi-function |
Technical Specifications
Our prestigious clients can avail from us, an excellent quality array of Fully Auto Shrink Packaging Machine. This machine is manufactured using latest methodologies and equipment as per the set industry standards. Moreover, our quality examiners inspect this machine on varied quality parameters in order to ensure delivery of flaw-free range at clients' end. Available in different technical specifications, offered machine can be availed at reasonable prices from us.
Features:
- Sturdy construction
- High performance
- Perfect design
Shrink Tunnel Machine
Description:
| Hi-Fi machine designs for 50kg to 500kg conveyor load |
| Conveyor on hollow pin chain basis with solid rods or heavy Rollers. |
| Conveyor rods covered with Asbestos Gland or silicon tube. |
| Conveyor operate with variable speed D.C drive or A.C variabel Drive. |
| Most of control panel instruments are of ISO 9001 or ISI Marked. |
| Heavy duty teflon or fiber glass wire used in wiring. |
| Heavy duty blower motor of ISI Marked. |
| Total M/C are used for Cycle duty. |
| Our speciality in special purpose shrink machine for heavy load And very big size article. |
| Our other specialities in shrinkage of empty pet Bottles.Highly Hazards chemical contairs like Neptha, |
| Specially for chemical industries and pesticides industries.We are also undertake job of heat chambers & drying lines.We are manufactured G.M.P models in our all the range of machines |
Technical Specifications
By focusing on variegated demands of our respected clients spread all over the country, we are offering an exclusive range of Shrink Tunnel Machine. This machine is designed by our skillful professionals using best quality components in observance with set industry standards. In addition to this, offered machine is available in different specifications as per the clients' needs at affordable prices within the stipulated time-frame.
Features:
- Easy to use
- Durability
- Long service life

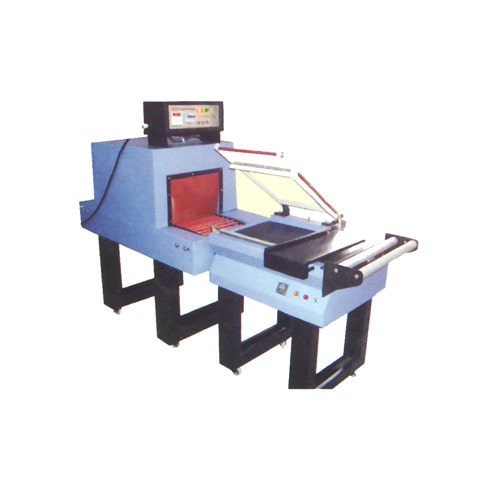

Shrink Tunnel With L Sealer Machine
Description:
| Machines used with manually or automatic conveyor shrinkage |
| High speed machines with rigid construction |
| power consumption are low |
| Powder coated machines with heavy structer |
| Covering teflon on the sealling knife. |
| Sealing time is accuratelly controlled in L sealer machine with shrink tunnel can reach a high packaging speed. L sealer & Shrink tunnel are suitable for PVC, POF, PP film. |
| In auto L sealer version product automatic passed in shrink tunnel. |
Technical Specifications
Our reputation in the market is largely attributable to our precisely designed Shrink Tunnel With L Sealer Machine. This machine is designed by using exceptional quality components and advanced technology by our experts. In order to ensure quality, this machine is strictly tested on various parameters by our quality examiners. Apart from this, easy to use and durability increase the demand of our offered machine in the market.
Features:
- Precisely design
- Easy to operate
- Hassle free performance
Jumbo Shrink Machine
Technical Specifications
Our company is devotedly involved in offering a broad range of Jumbo Shrink Machine to our respected clients spread all across the country. The offered machine is widely appreciated and demanded in market for its salient features such as sturdy construction, superior performance etc. Further, this machine is tested on diverse parameters to ensure that we are delivering only faultless product to our clients.
Features:
- Sturdiness
- Durability
- Dimensionally accurate
L Sealer Machine
Product Description:
| Packing Speed: 500 to 1000 PCS / Min |
| Min. Packing Size: 150 X 140 X 110 |
| Max Packing Size: as Per Require |
| Power Supply: 230, 240v., 50 hz., 1-phase |
| Power Consumption: 0.85 Kw |
| Machine Weight: 85 Kgs |
Product Specifications:
- It is available in Manual as well as Automatic option
- Machine operates on 240 volt, A.C 5 amps socket
- Very low consumption of power due to heavy duty transformer with silicon stampings
- Silicon rubber used for long life operation life
- High Speed Magnesia Heating Element for Powerful operation of sealing
- Timers are accurate and long life
- Height adjusted with shrink m/c (In stage of Production only
- Heavy duty aluminum roller and shock proof Plastic Handle
Shrink Chamber Machine
Product Description:
| It is available in manual as well as automatic option |
| Machine operates on 240 volt, a. C 5 amps socket |
| Very low consumption of power due to heavy duty transformer with silicon stampings |
| Silicon rubber used for long life operation life |
| High speed magnesia heating element for powerful operation of sealing |
| Timers are accurate and long life |
| Height adjusted with shrink m/c (in stage of production only) |
| Powder coated body with castor wheel |
| Heavy duty aluminum roller and shock proof plastic handle |
Product Specifications:
- Max. Product hight: 200 mm
- Sealing area: 22" x 16" or as per customer requirement
- Impulse sealing system: bottom blade
- Max trim roll in width: 600 x 250
- Working hight: 920 mm
- Out put product: 4 to 8 pcs / min
- Power supply: 230, 240v., 50 hz., 1-phase
- Power consumption: 3. 5 kw
